The Science Behind Single Phase Preventer Relays: How They Work

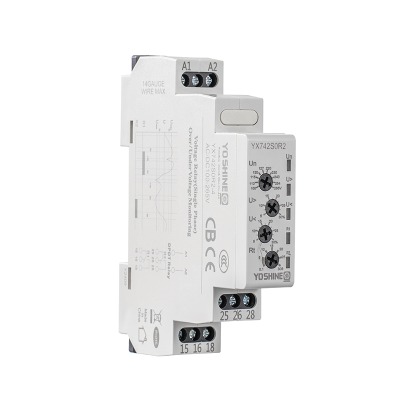

Supply single phase preventer relay

A single phase preventer relay is an essential device in electrical systems, particularly for protecting three-phase motors from damage caused by phase failures. These relays are designed to detect any loss of phase in a three-phase supply, which can lead to severe overheating and potential burnout of motors. Understanding the different types of preventer relays and their applications is crucial for ensuring the longevity and reliability of electrical equipment.

There are primarily three types of single phase preventer relays: mechanical type, voltage sensing type, and current sensing type. Each type operates on different principles and is suited for various applications.

The mechanical type single phase preventer relay uses a bimetallic strip that reacts to temperature changes caused by unbalanced currents. When one phase is lost, the remaining phases draw more current, leading to overheating. The mechanical relay opens the circuit to prevent damage. However, this type is becoming less popular due to its slower response time and potential unreliability compared to modern alternatives.

The voltage sensing single phase preventer relay monitors the voltage levels across the three phases. It detects any imbalances or phase losses by analyzing the phase sequence. If a phase is missing, the relay will trip and disconnect the motor from the power supply. This type is widely used in industrial applications where precise voltage monitoring is critical for equipment protection. It is particularly effective in environments where phase reversal or unbalanced voltages can occur, ensuring that motors operate under safe conditions.

The current sensing single phase preventer relay operates by monitoring the current flowing through each phase. It utilizes current transformers to detect any discrepancies in the current levels. When a phase failure occurs, the relay senses the negative sequence current, which indicates an imbalance. This type of preventer relay is highly effective in protecting motors from overheating and damage due to single phasing. It is commonly used in various industrial applications, including pumps, compressors, and conveyor systems.

In terms of applications, single phase preventer relays are crucial in protecting induction motors, which are prevalent in many industries. These relays prevent motors from running under unsafe conditions, such as when one phase is lost. If a motor continues to operate without one phase, it can draw excessive current, leading to overheating and eventual failure. By using a single phase preventer relay, operators can ensure that motors are only running when all three phases are present, significantly reducing the risk of damage.

Moreover, single phase preventer relays are also used in agricultural applications, particularly in irrigation systems where three-phase motors are common. These systems require reliable operation to ensure that water is delivered efficiently. A phase failure in such systems can lead to significant downtime and crop damage. By implementing a single phase preventer relay, farmers can protect their equipment and maintain consistent operation.

In commercial settings, these preventer relays are employed to safeguard HVAC systems and other critical machinery. These systems often rely on three-phase motors for efficient operation. A phase loss can disrupt service and lead to costly repairs. The use of a single phase preventer relay helps to mitigate these risks by ensuring that the equipment is disconnected from the power supply in the event of a phase failure.

The importance of single phase preventer relays cannot be overstated. They play a vital role in protecting electrical equipment from the detrimental effects of phase failures. By understanding the different types of preventer relays and their specific applications, operators can make informed decisions about their electrical systems. Whether in industrial, agricultural, or commercial settings, the implementation of a single phase preventer relay is a proactive measure that enhances the safety and reliability of electrical operations.
