Ten Function Liquid Level Relay YX632T1H33

The liquid level relay is a floatless liquid level relay that controls the liquid level in the container. When the liquid level reaches a certain height, the conductivity of the liquid is used to open or close the contact output and automatically control the operation or stop of the water pump, which fails to achieve the purpose of controlling the liquid level and volume in the container.

01 Ten Working Modes

●01●Three-Level Water Supply Automatic Control(With Delay)

When the liquid level is lower than E2, the delay starts, and the delay completes the relay closing; when the liquid level rises to E1, the delay starts, and the delay completes the relay disconnection, and so on.

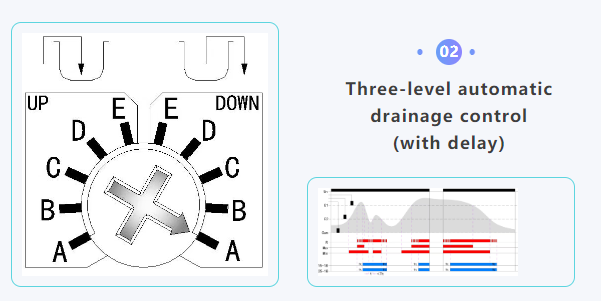

●02●Three-level automatic drainage control(with delay)

When the liquid level is higher than E1, the delay starts, and the delay completes the relay closing; when the liquid level drops below E2, the delay starts, and the delay completes the relay disconnection, and so on.

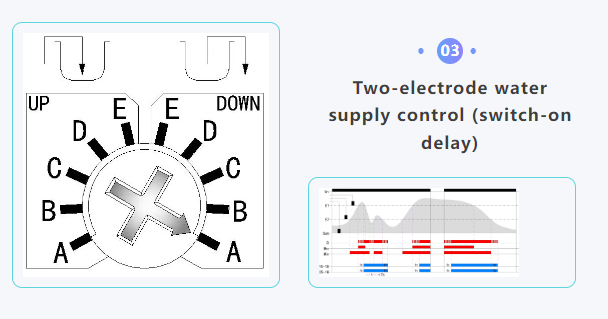

●03●Two-electrode water supply control (switch-on delay)

When the liquid level is lower than E2, the delay starts, and the delay completes the relay closing; when the liquid level returns to E2, the relay turns off, and the cycle continues.

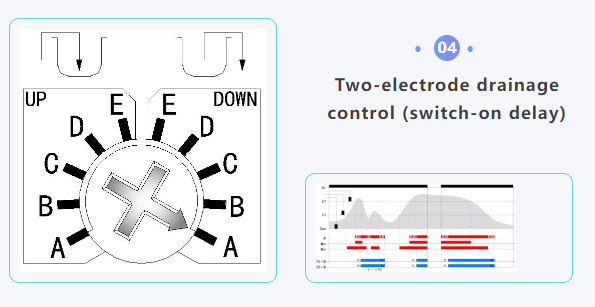

●04●Two-electrode drainage control (switch-on delay)

When the liquid level is higher than E2, the delay starts, and the delay completes the relay closing; when the liquid level is lower than E2, the relay turns off, and so on.

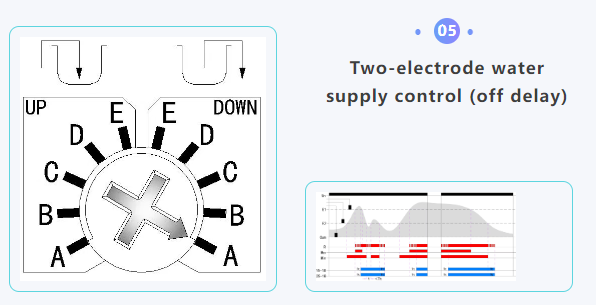

●05●Two-electrode water supply control (off delay)

When the liquid level is lower than E2, the relay closes. When the liquid level returns to E2, the delay starts. When the delay is completed, the relay turns off, and the cycle continues.

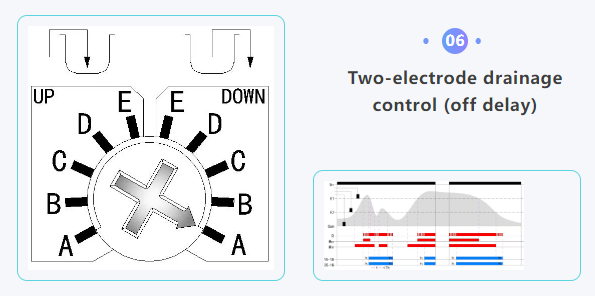

●06●Two-electrode drainage control (off delay)

When the liquid level is higher than E2, the relay is activated, when the liquid level is lower than E2, the delay starts, and when the delay is completed, the relay turns off, and so on.

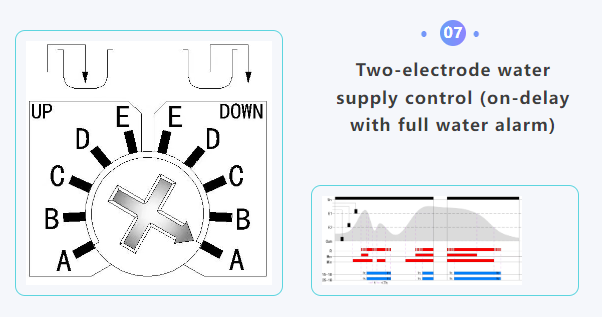

●07●Two-electrode water supply control (on-delay with full water alarm)

When the liquid level is lower than E2, the delay starts, and the delay completes the relay closing; when the liquid level rises to E2, the relay is disconnected. If the liquid level continues to be higher than E1, a full water alarm is issued, and the cycle continues.

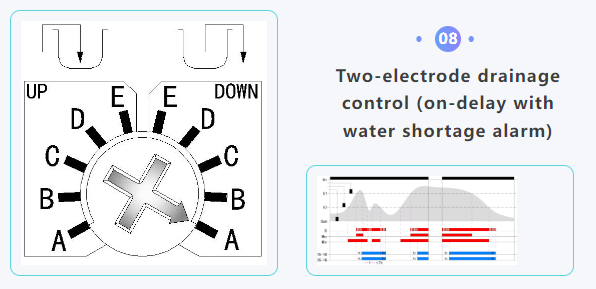

●08●Two-electrode drainage control (on-delay with water shortage alarm)

When the liquid level is higher than E2, the delay starts, and the delay completes the relay closing; when the liquid level is lower than E2, the relay is disconnected; if the liquid level continues to be lower than E1, a water shortage alarm is issued, and the cycle continues.

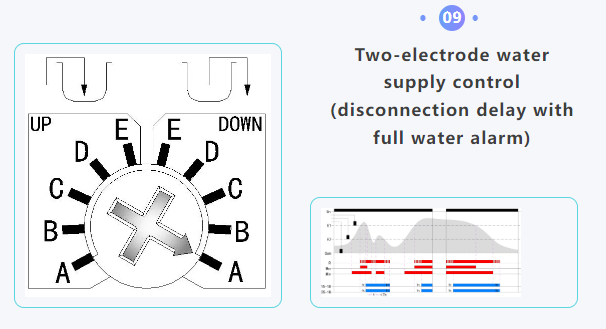

●09●Two-electrode water supply control (disconnection delay with full water alarm)

When the liquid level is lower than E2, the relay closes, and when the liquid level rises to E2, the delay starts, and when the delay is completed, the relay turns off; if the liquid level continues to be higher than E1, a full water alarm is issued, and the cycle continues.

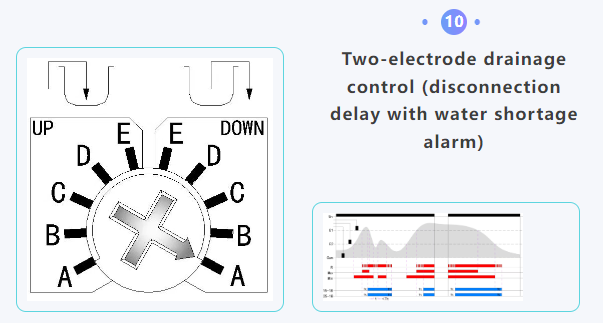

●10●Two-electrode drainage control (disconnection delay with water shortage alarm)

When the liquid level is higher than E2, the relay is activated, when the liquid level is lower than E2, the delay starts, and when the delay is completed, the relay turns off. If the liquid level continues to be lower than E1, a water shortage alarm is issued, and the cycle continues.

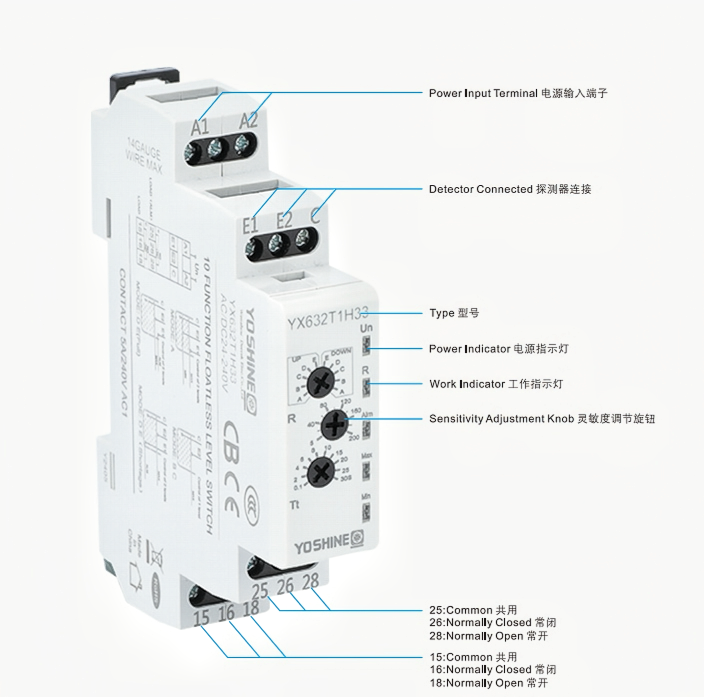

02Models And Explanations

03Product Parameters

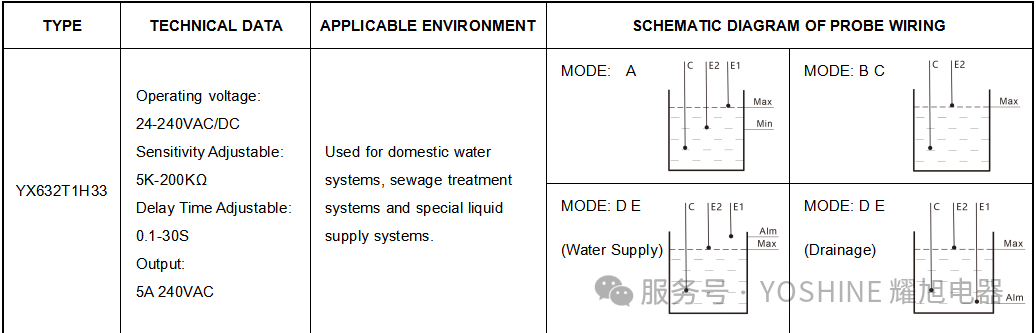

TYPE     YX632T1H33

TECHNICAL DATA

Operating voltage.

24-240VACIDC

Sensitivity Adjustable.5K-200KQ

Delay Time Adjustable.0.1-30S

Output.

5A 240VAC

APPLICABLE ENVIRONMENT

Used for domestic watersystems,sewage treatmentsystems and special liquidsupply systems.

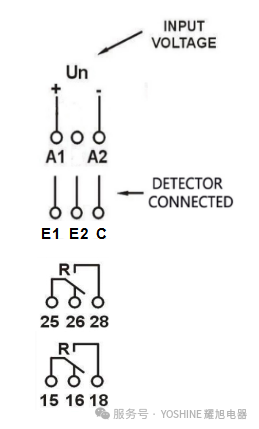

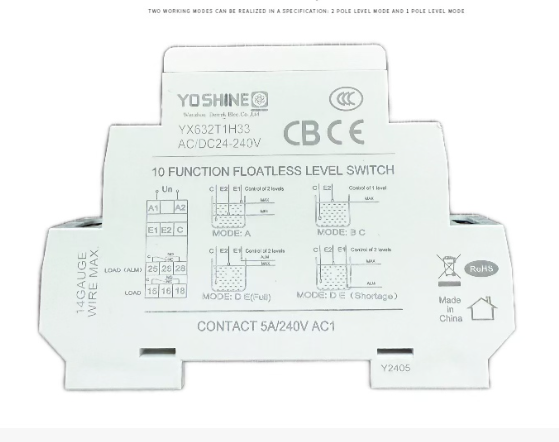

04Product Wiring Diagram

05Features And Uses

• Drainage And Water Supply Modes Can Be Set

• Ultra Wide Operating VoltageAC/DC 24-240V

has an ultra-wide voltage: 24-240v, and the delay range is 0.1-30S.

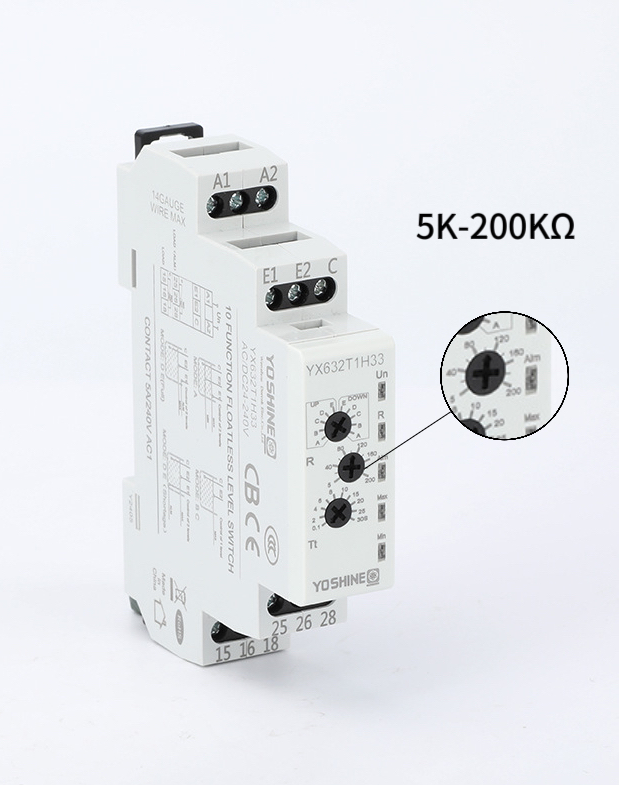

• Ultra-High Sensitivity Adjustable5K-200KΩ

Liquid level relays are generally used in homes, industries, commercial places, public places and other places where automatic monitoring of water supply and drainage systems is required. Small size and complete specifications. It can be widely used in domestic water systems, sewage treatment systems, and special liquid supply systems.

• Liquid level relays are widely used in various industrial scenarios, such as water treatment, chemical industry, food processing,pharmaceutical and other fields. They are used to monitor the level of liquids in tanks, containers, tanks or pipes to ensure the proper functioning of processes and avoid problems such as overflows or dryouts.
• Liquid level relays can also be used to control pumps, valves, nozzles and other equipment to automate liquid handling processes.
