Product Introduction｜WI-FI Intelligent Control Relay

Wholesale WiFi Intelligent Relay Manufacturing Company

Wi-Fi Intelligent Control Relay is an advanced electronic device that combines wireless communication technology and traditional relay control functions. It allows users to remotely control the switches of electrical equipment through wireless networks and implement operations such as timing delays.

Part.01 Working Principle

• Download and install the APP on your mobile phone (scan the QR code on the product to download Tuya), register and log in
• Power on the product, press the product reset button, and the green light will flash quickly for about 5 seconds (the product is in network distribution status)

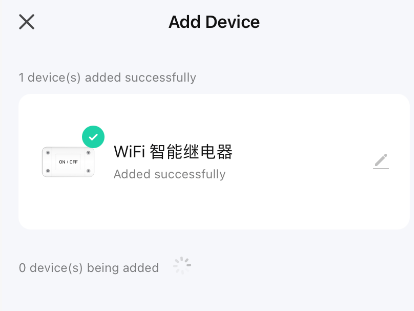

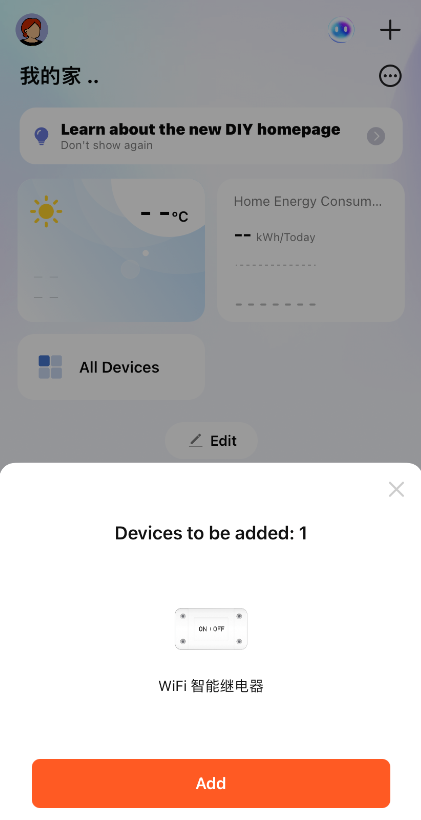

• On the APP interface, click "Add Device" and it will prompt "Discover Device". Enter the Wi-Fi name and password to automatically add the device.

Part.02 Product Features

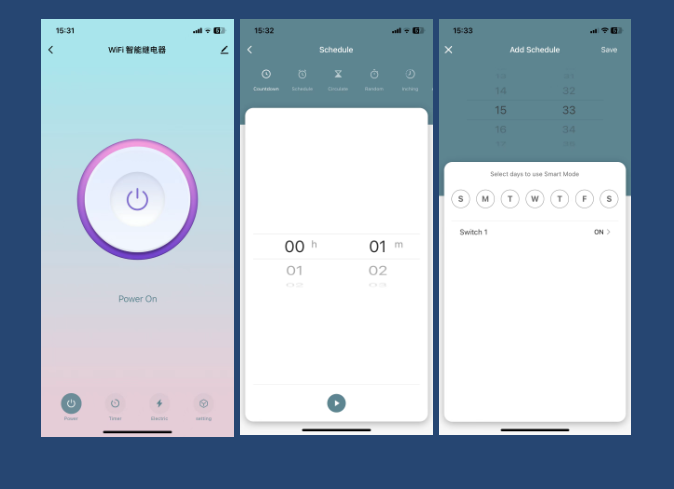

• Manual switch: Click the button switch on the control page to turn the load on or off. (Figure 1)
• Automatic timing: countdown, timing, cycle timing, random timing, electric switch, astronomical timing.

1. Countdown: After the set time, the countdown starts. When the time is up, switch the switch state. (Figure 2)
2. Timing:At a specified time point, turn on/off the load (Figure 3)

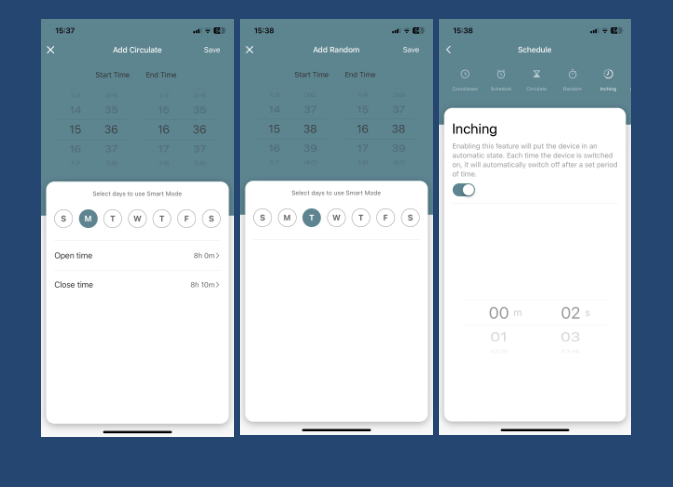

3. Cycle timing: Within the specified time range, repeatedly turn on and off the load, the duration can be set. (Figure 4)
4. Random timing: Within half an hour before and after the specified time point, the load is randomly turned on/off. (Figure 5)
5. Inching switch: Set the execution switch, turn it on on the control page, and turn it off when the time is up. (Figure 6)

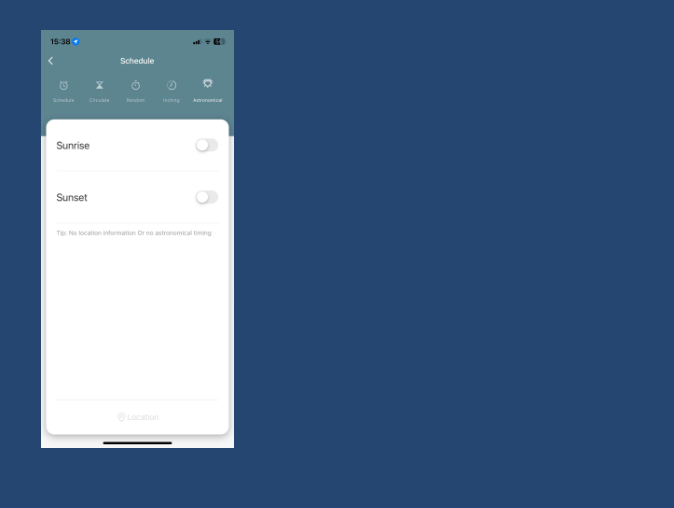

6. Astronomical timing: Turn on/off the load according to the local sunrise and sunset times. (Figure 7)

Part.03 Product Parameters

PRODUCT PARAMETERS

WIFI standard IEEE     802.11b/g/n

WIFI encryption type WEP/TKIP/AES

WIFI working mode   STA/AP/STA+AP

WIFI security supports WPA/WPA2

Working frequency      2.4GHz-2.5GHz (2400M-2483.5M)

Wireless transmission distance Generally 45m indoors, 150m outdoors (depending on the environment)

Working temperature   -10°C~60°C

Rated current     10A

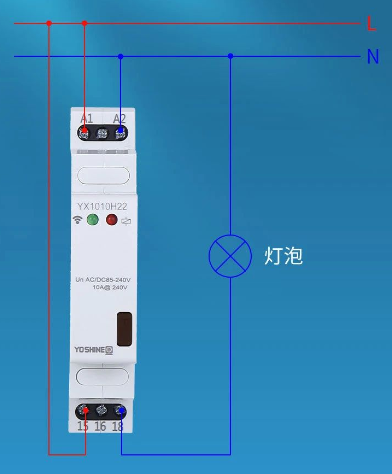

Part.04 Wiring Diagram And Functional Analysis

Part.05 Product Size

Application Areas

WiFi Intelligent Control Relay is a relay device that can be remotely controlled through WiFi network. It is widely used in smart homes, industrial automation, smart agriculture and many other fields.

• Smart Home Field:

Home appliance control: You can remotely control the switches of air conditioners, TVs, water heaters and other appliances in your home through mobile APP.

Lighting control: Realize remote switch, timer switch and other functions for home lights.

Curtain control: Control the opening and closing of curtains through your mobile phone or voice assistant.

• Industrial Automation Field:

Equipment remote monitoring and management: Remote monitoring and switch control of various equipment such as production lines, motors, pumps, etc.

Environmental monitoring and control:

Automatically control the operation of ventilation equipment, air conditioning equipment, etc. based on environmental parameters. If the temperature in the workshop is too high, the ventilation equipment or air conditioner will be automatically started to cool down.

• Intelligent Agriculture Field:

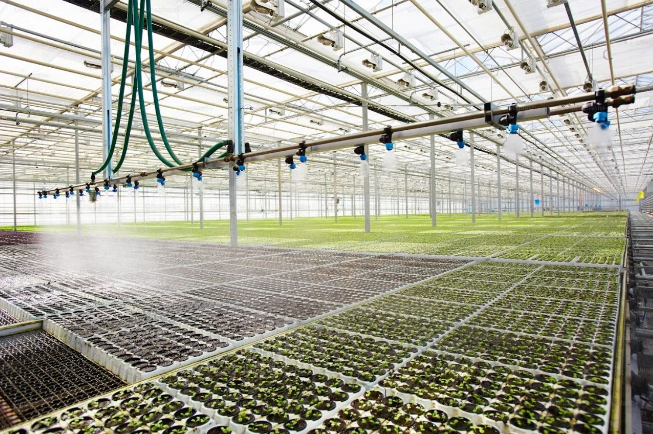

Irrigation system control: Automatically control the switch of irrigation equipment through WiFi intelligent control relay to achieve precise irrigation.

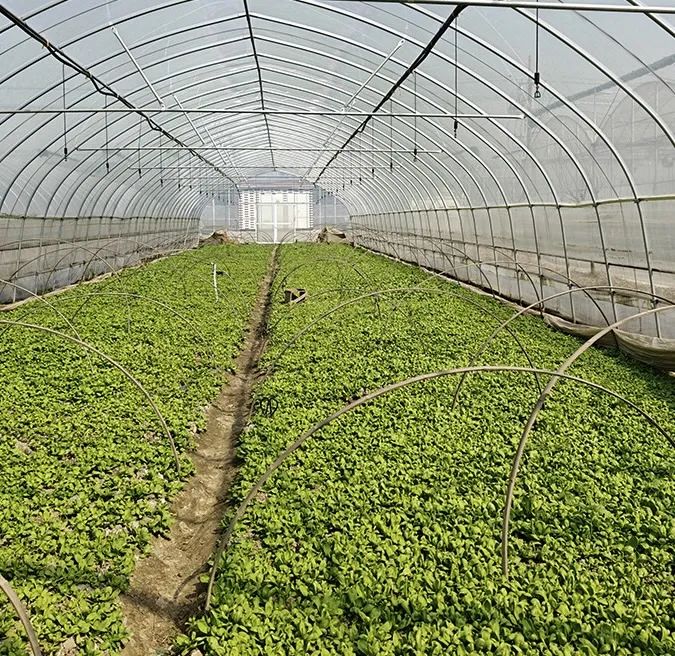

Greenhouse environment control: Control the temperature, humidity, light, etc. in the greenhouse. When the temperature is too low, the heating equipment is automatically started; when the light is insufficient, the fill light is automatically turned on.

Generous, the WiFi Time Relay is a very practical electronic device that combines wireless communication technology with traditional relay control functions to provide users with a more convenient and intelligent way to control electrical appliances.
