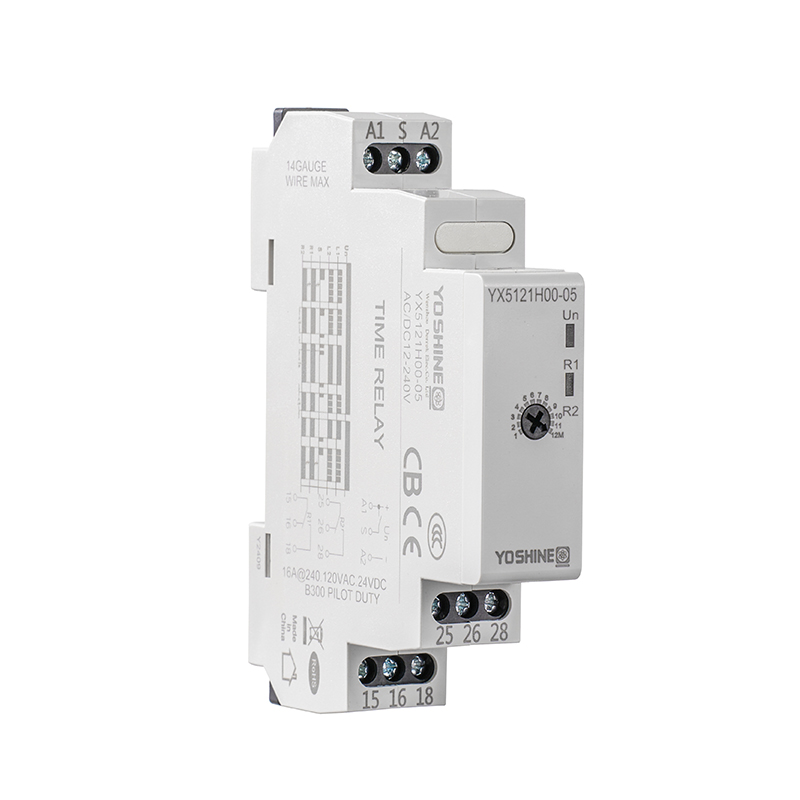

| ■ Characteristics | Single trigger single time delay disconnect 8 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 1-12M/30-60M | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 24 times |

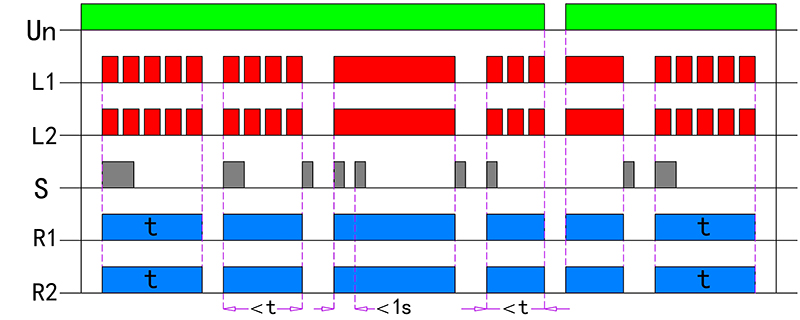

When relay Un is powered on:
● S control terminal connected: Both R1 and R2 contacts close and the delay starts. After delay t, all output contacts open.
● If S control terminal reconnects during delay t, all relays open.
● If S control terminal reconnects twice within 1 second during delay t, the relays remain engaged and exit the delay state. Reconnecting S again opens all relays.
● Upon power cycling Un, the relay retains its previous state before power-off.
Mode Characteristics:
● Trigger delay on S rising edge
● Delay cannot be reset
● Delay can be stopped
● Can be triggered again
● Power-off memory function
