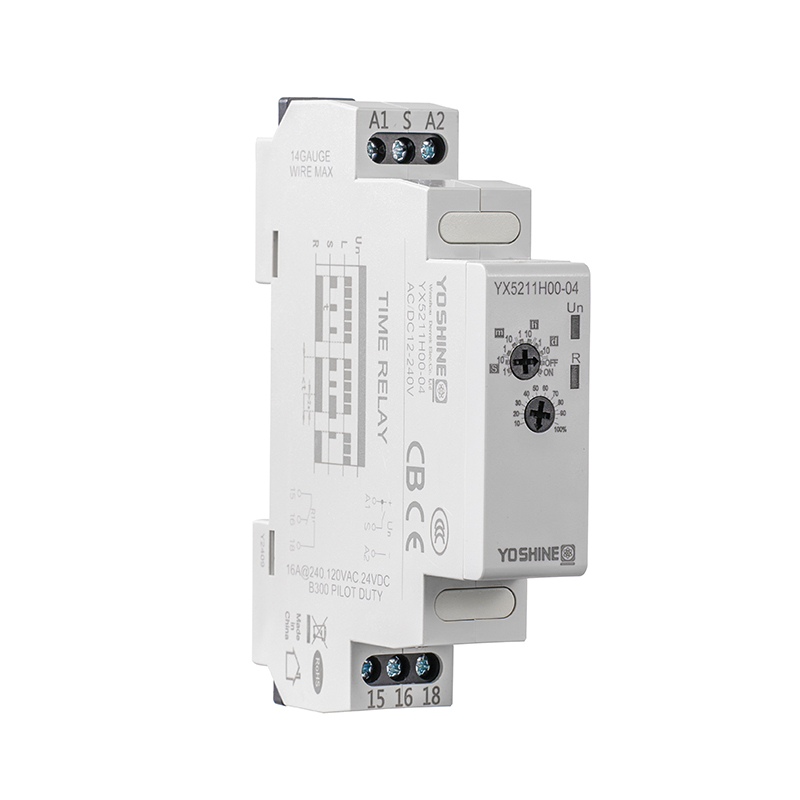

| ■ Characteristics | Single trigger single time delay off | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay SPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 6 times | ■ Alternative Models |

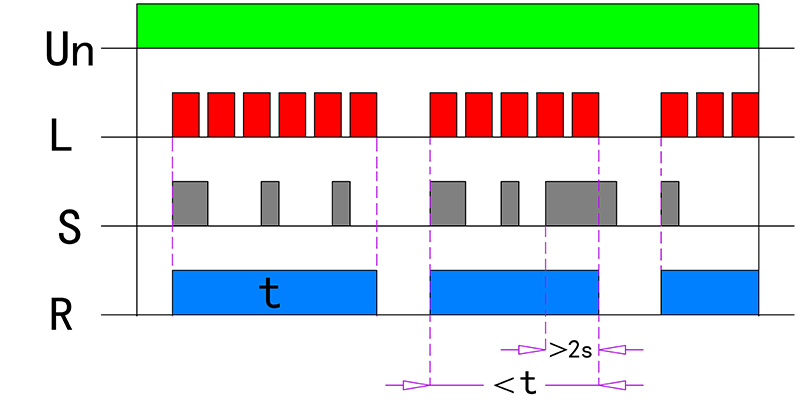

When relay Un is powered on:
When the S control terminal is connected, output contact R closes and the delay begins. After the delay of time t, R opens. If the S control terminal is connected for more than 2 seconds during the delay period, R will be forced to open. If the S connection time is less than 2 seconds, the delay will not be reset. The cycle repeats.
Mode characteristics:
● S rising edge triggers delay
● Delay cannot be reset
● S connection longer than 2 seconds forces opening
● Can be triggered again
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5211H00-04 Single Trigger Single Time Off Delay Time Relay Supplier and Wholesale YX5211H00-04 Single Trigger Single Time Off Delay Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
