| ■ Characteristics | Single trigger single time delay off 1 - with pause | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay SPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 18 times | ■ Alternative Models | 5271 |

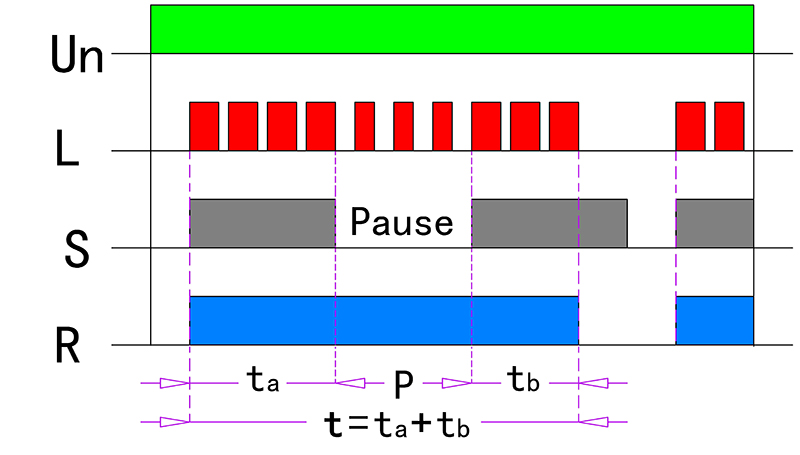

When the relay Un is powered on: The output contact R closes, and when the cumulative delay time during which the S control terminal is connected reaches t, R opens. This process repeats.
Mode characteristics:
● Delay triggered on rising edge of S
● Pause triggered on falling edge of S
● Cumulative delay with pauses
● Can be retriggered
