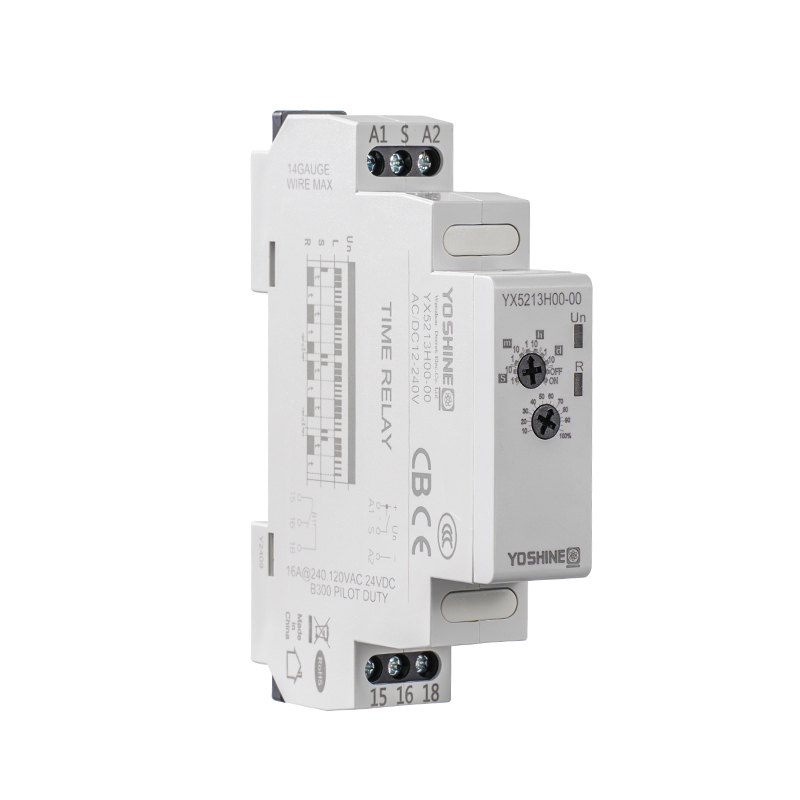

| ■ Characteristics | Single trigger single time cyclic delay 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Cycle SPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 17 times | ■ Alternative Models |

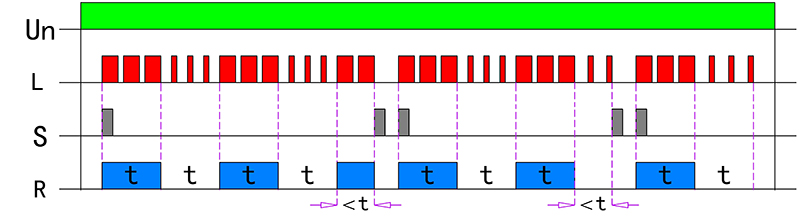

When the relay Un is energized:
The S control terminal is on, the output contact R closes and starts the delay. After time t, R opens, and after another delay time t, R closes again. This cycle repeats until the relay Un is powered off. During the delay time t, if the S control terminal is turned on again, the delay state is exited and initialized to delay mode again. The above operation repeats.
Mode characteristics:
● Delay triggered by the rising edge of S
● Can exit the delay state
● Delay can be reset
● Can be triggered to restart
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5213H00-00 Single Trigger Single Time Cycle Time Relay Supplier and Wholesale YX5213H00-00 Single Trigger Single Time Cycle Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
