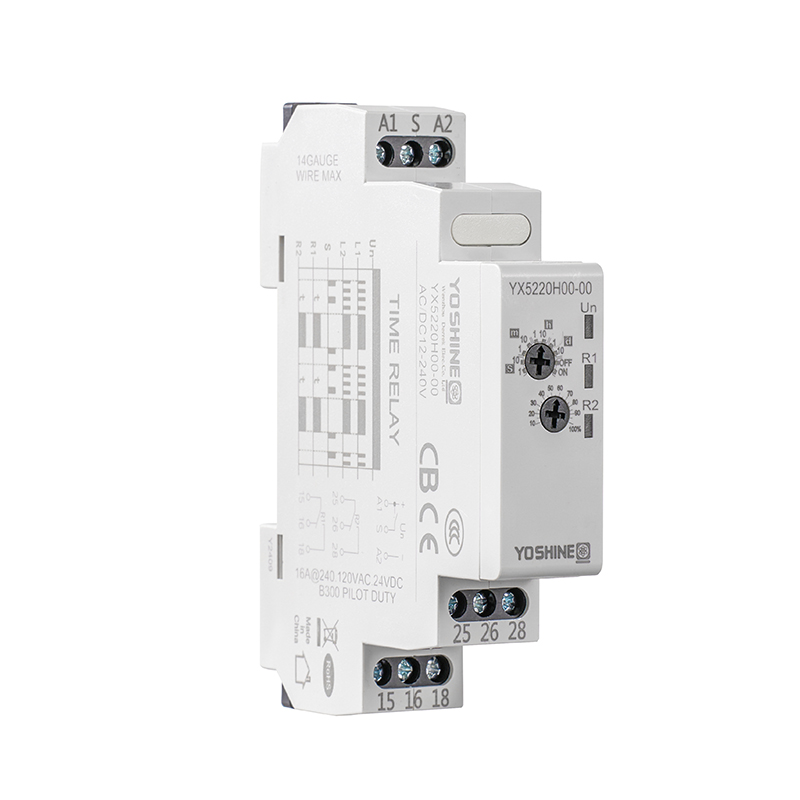

| ■ Characteristics | Single-trigger single-time-delay turn-on | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 14 on |

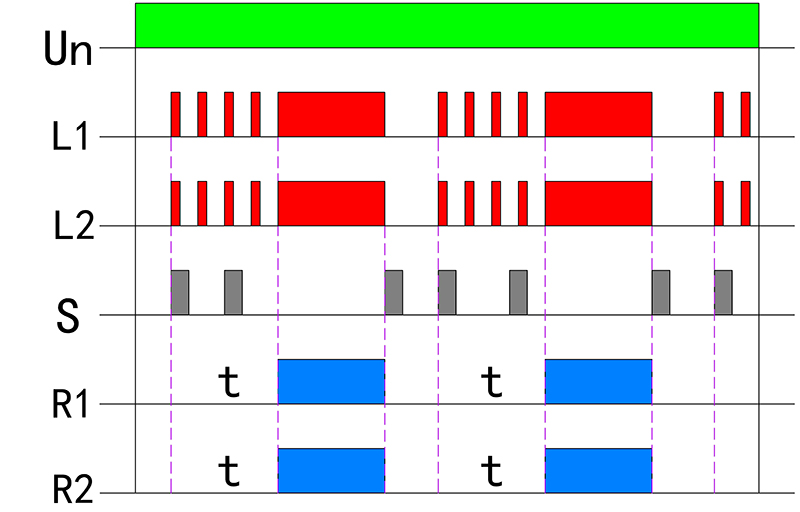

When relay Un is powered on:
S control terminal connected: R1 and R2 output contacts start the delay. After delay t, both R1 and R2 close. When the S control terminal reconnects, both R1 and R2 output contacts open. Repeat the above actions.
Mode Characteristics:
● Trigger delay on S falling edge
● Delay cannot be reset
● Can be triggered again
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5220H00-00 On Delay Time Relay Supplier and Wholesale YX5220H00-00 On Delay Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
