| ■ Characteristics | Single trigger single time cyclic delay 1 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Cycle DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 17 on | ■ Alternative Models |

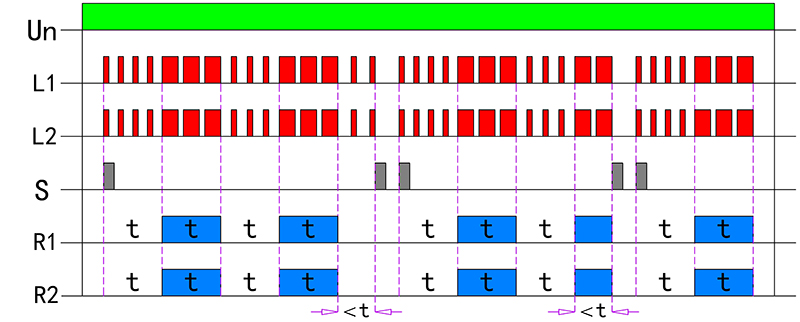

When the relay Un is energized:
The S control terminal is on, and the output contacts R1 and R2 start the delay. After time t, R1 and R2 close, and after another delay time t, R1 and R2 open. This cycle repeats until the relay Un is powered off. During the delay time t, if the S control terminal is turned on again, the delay state is exited and initialized to delay mode again. The above operation repeats.
Mode characteristics:
● Delay triggered by the rising edge of S
● Can exit the delay state
● Delay can be reset
● Can be triggered to restart
