| ■ Characteristics | Single-trigger single-time-delay turn-on | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 14 times |

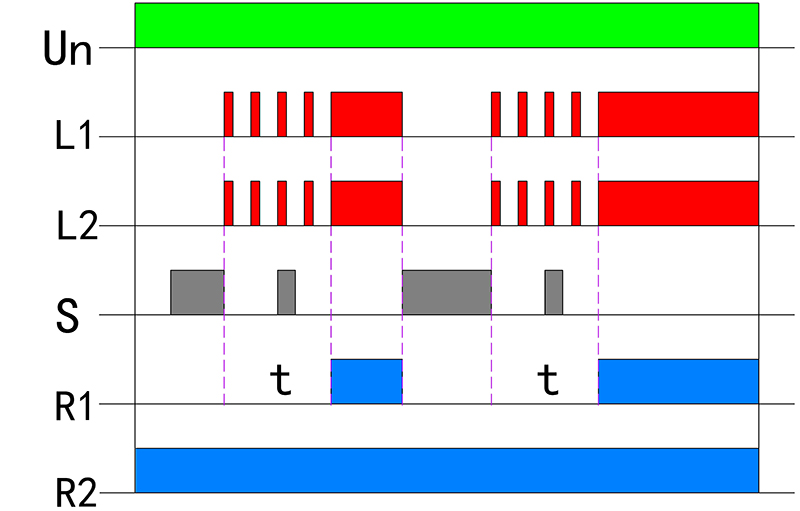

When the relay Un is energized:
When the S control terminal connects and disconnects, the delay starts. After a delay of t, output contact R1 closes. When the S control terminal is connected again, R1 opens. When the S control terminal disconnects, R1 closes again after a delay of t. The above actions repeat.
In this mode, output contact R2 closes immediately upon power-up and remains closed until the relay Un is de-energized, at which point R2 opens.
Mode Characteristics:
● S triggers the delay on the falling edge.
● Delay cannot be reset.
● Can be triggered again to start.

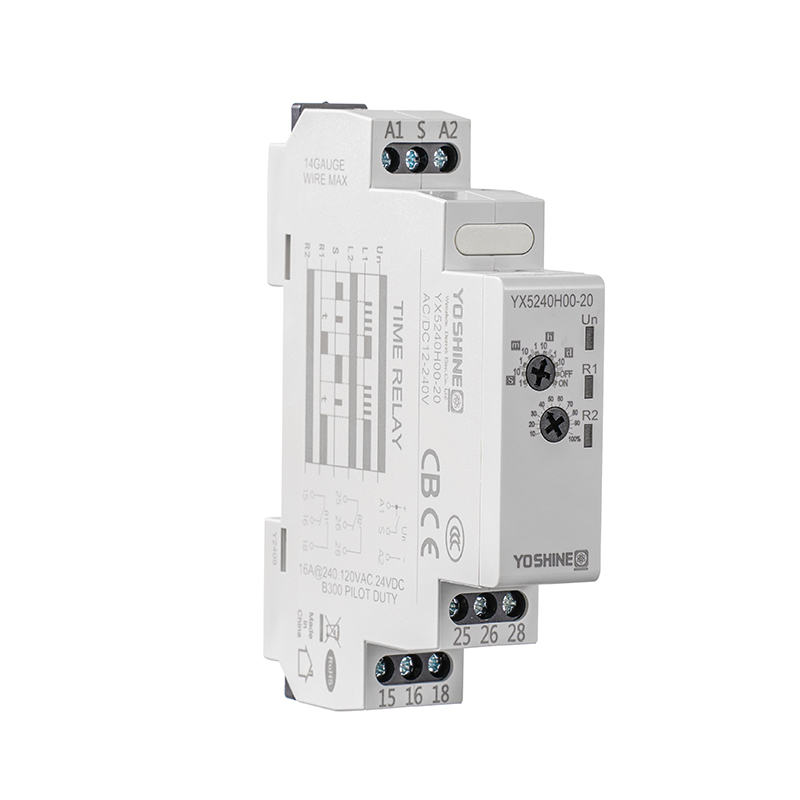

Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5240H00-20 Single Trigger Single Time On Delay Time Relay Supplier and Wholesale YX5240H00-20 Single Trigger Single Time On Delay Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
