| ■ Characteristics | Single time on delay/single trigger single time off delay | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 23 |

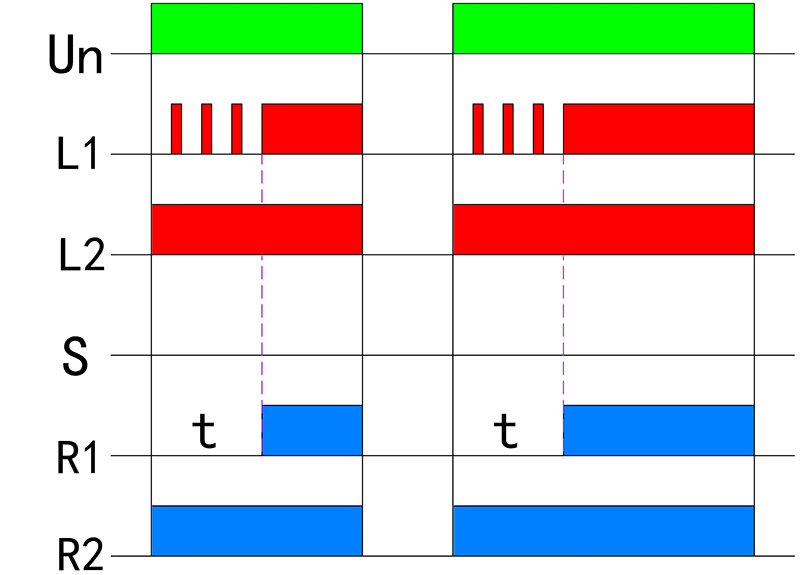

Dual-mode power-on delay (default mode is Mode 1; if S control terminal is connected before power, Mode 2 is activated): Mode 1: When relay Un is powered on, the delay starts. After the delay time t, the output contact R1 closes. When relay Un is powered off, R1 opens. The S control signal is not valid in this mode. Mode 2: If the S control terminal is connected before power, once relay Un is powered on, after the cumulative delay during S disconnection reaches time t, all output contacts close. In both modes, output contact R2 closes immediately when power is applied and remains closed until relay Un is powered off.
Mode Features:
● Falling edge of S triggers delay.
● Rising edge of S pauses delay.
● Trigger time is cumulative with pause.
● Cannot be triggered again to start.
 |
 |

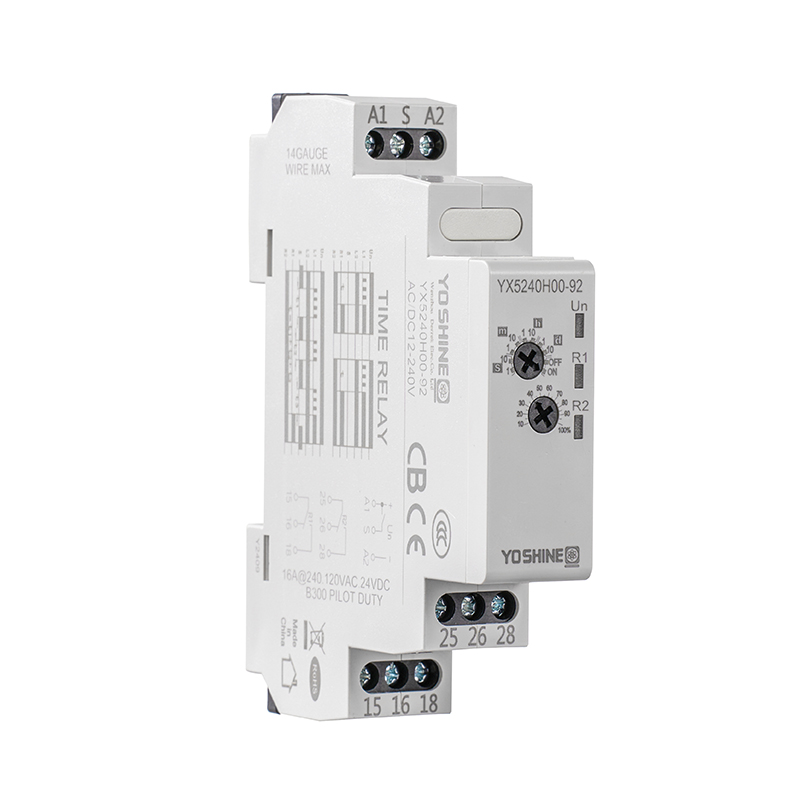

Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5240H00-92 Power-On Delay Trigger Time Relay Supplier and Wholesale YX5240H00-92 Power-On Delay Trigger Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
