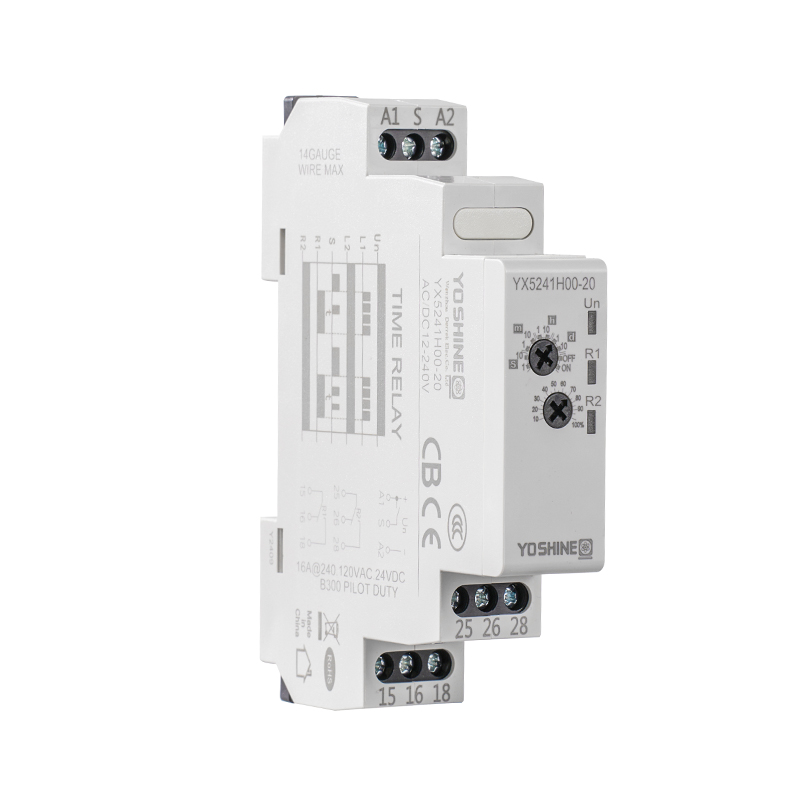

| ■ Characteristics | Single trigger single time delay off 2 - falling edge | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 21 times | ■ Alternative Models |

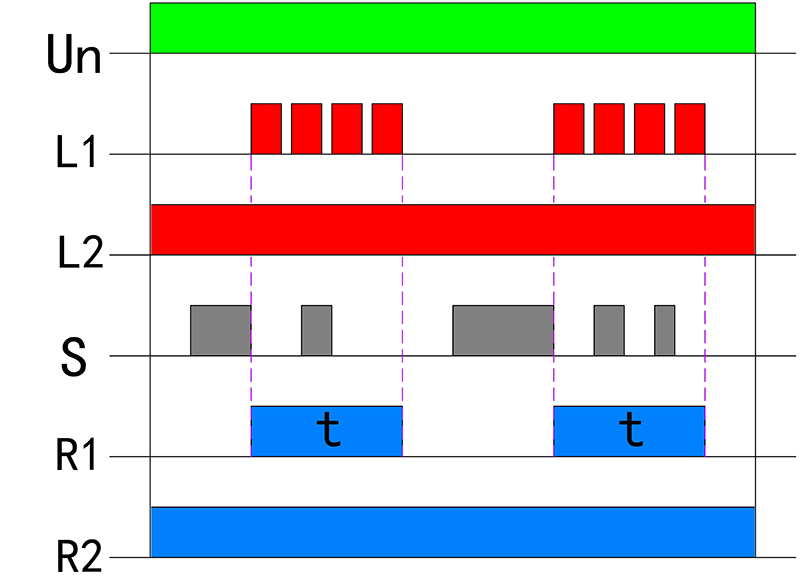

When the relay Un is powered on: When the S control terminal is disconnected, the output contact R1 closes and starts the delay. After delay t, R1 opens. During delay t, reconnecting or disconnecting the S control terminal has no effect, and the delay t remains unchanged until it ends and R1 opens. This process repeats.
In this mode, output contact R2 closes immediately upon power-on and remains closed until the relay Un is powered off.
Mode characteristics:
● Delay triggered on falling edge of S
● Delay cannot be reset
● Can be retriggered
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5241H00-20 Single Trigger Single Time Off Delay Time Relay Supplier and Wholesale YX5241H00-20 Single Trigger Single Time Off Delay Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
