| ■ Characteristics | Single trigger single time delay off 1 - with pause | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 18 times | ■ Alternative Models |

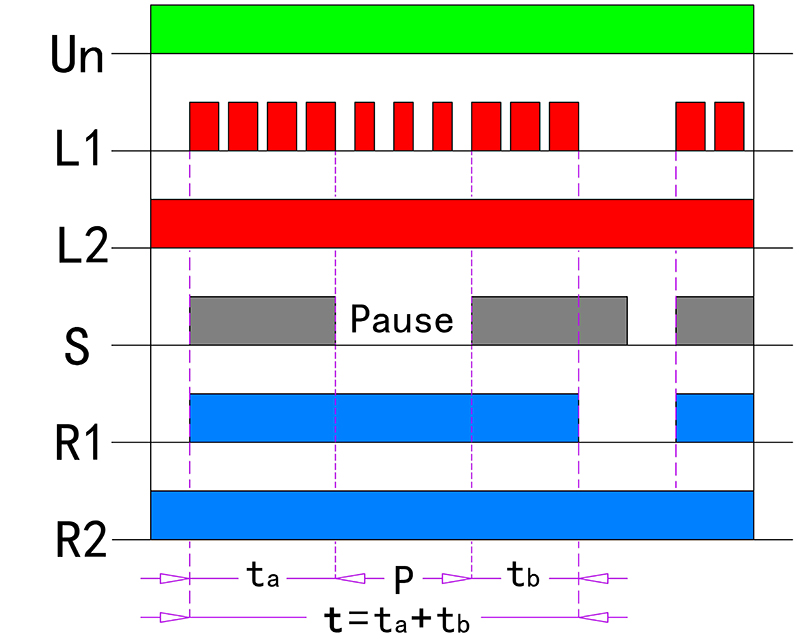

When the relay Un is energized, the output contacts R1 and R2 close. After the cumulative delay during which the S control terminal is on reaches time t, R1 and R2 open. The above operation repeats. In this mode, output contact R2 closes immediately upon power-up and remains closed until the relay Un is powered off.
Mode characteristics:
● Delay triggered by the rising edge of S
● Pause triggered by the falling edge of S
● Cumulative delay time with pause when S is triggered
● Can be triggered to restart
