| ■ Characteristics | Single trigger dual time delay | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 1 | ■ Alternative Models |

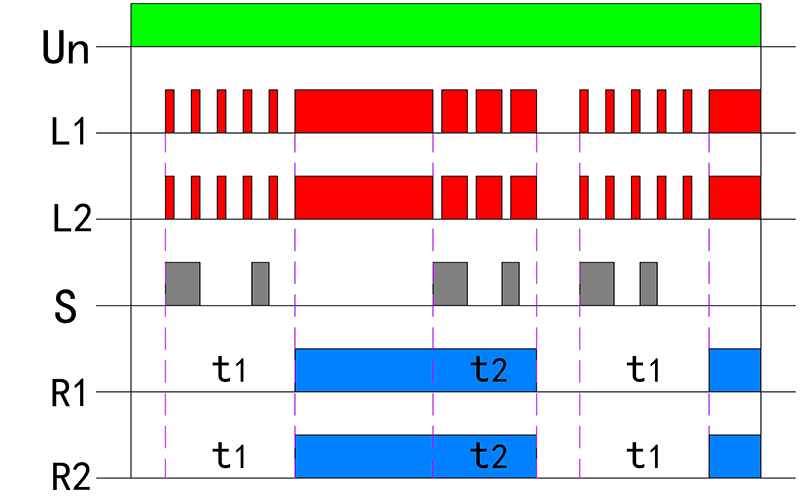

When relay Un is powered on:
When the S control terminal is connected, the delay starts, and after delay t1, output contacts R1 and R2 close. When the S control terminal is connected again, the relay delays by t2 before R1 and R2 open. The process repeats.
Mode characteristics:
● Triggered by the rising edge of S
● Delay cannot be reset
● Can be triggered again

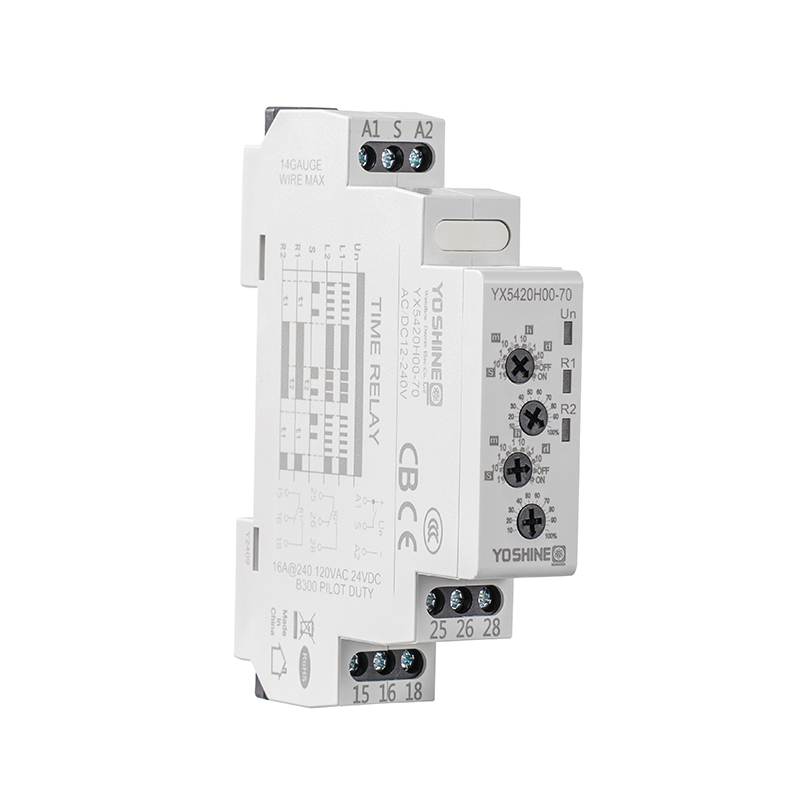

Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5420H00-70 Single Trigger Dual Time Relay Supplier and Wholesale YX5420H00-70 Single Trigger Dual Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
