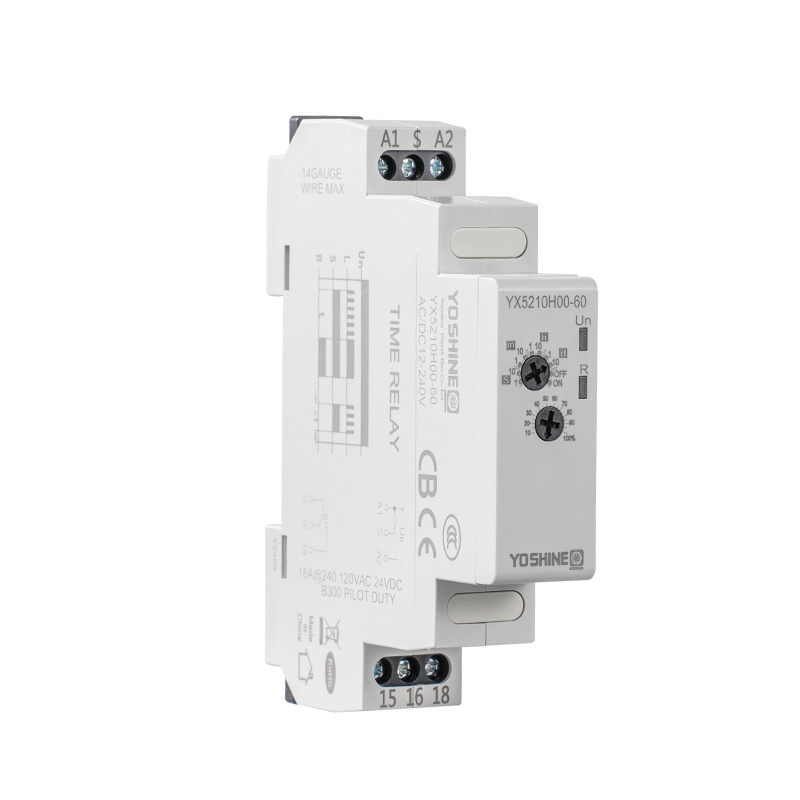

| ■ Characteristics | Monostable triggered single time delay energized 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay SPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 9 times |

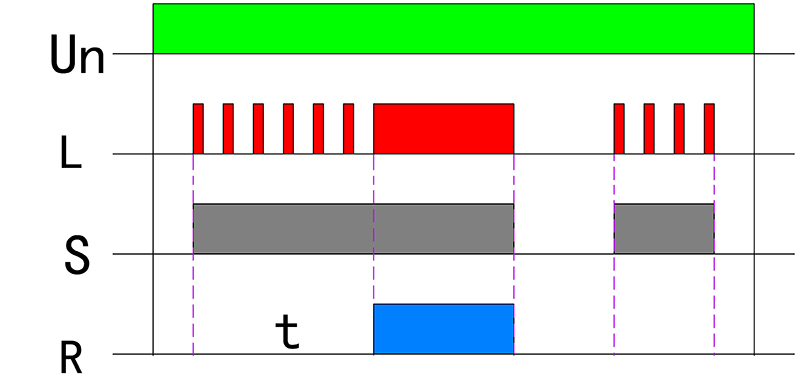

When the relay Un is energized:
When the S control terminal connects, the delay starts. After a delay of t, output contact R closes. When the S control terminal disconnects, R opens. If the S control terminal disconnects during the delay t, R resets to standby. The above actions repeat.
Mode Characteristics:
● S triggers on the rising edge to start and the falling edge to open.
● Always operates in the S closed state.
● Delay can be reset.
● Can be triggered again to start.
