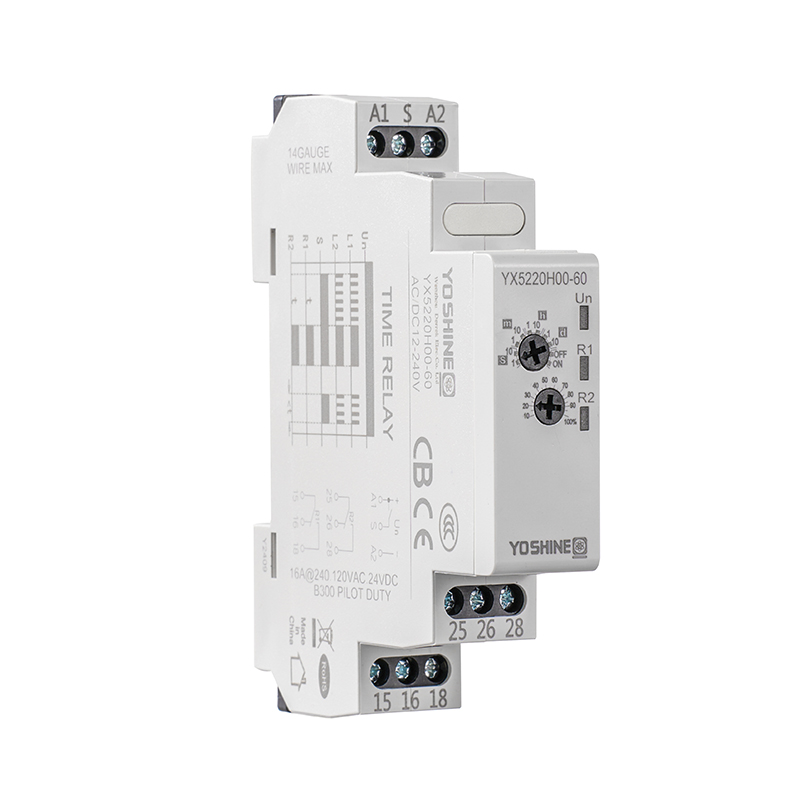

| ■ Characteristics | Monostable triggered single time delay energized 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 9 times |

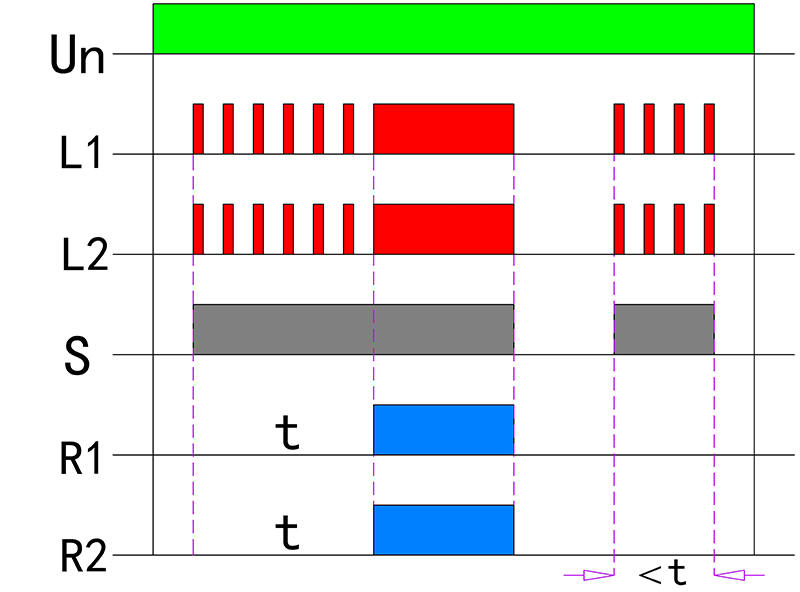

When Un is powered on:
When the S control terminal is connected, the delay starts. After the delay time t, the output contacts R1 and R2 close. When the S control terminal is disconnected, R1 and R2 open. If the S control terminal is disconnected during the delay period t, R1 and R2 reset to standby. The above actions repeat.
Mode Features:
● Rising edge of S triggers the start, falling edge disconnects.
● Operates continuously while S is closed.
● Delay can be reset.
● Can be triggered again to start.
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5220H00-60 Monostable Trigger Time Relay Supplier and Wholesale YX5220H00-60 Monostable Trigger Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
