| ■ Characteristics | Single trigger pulse output / pulse output | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 11 | ■ Alternative Models |
Power-On Delay Dual Mode (Default is Mode 1; if the S control terminal is activated before the power supply, Mode 2 is triggered):

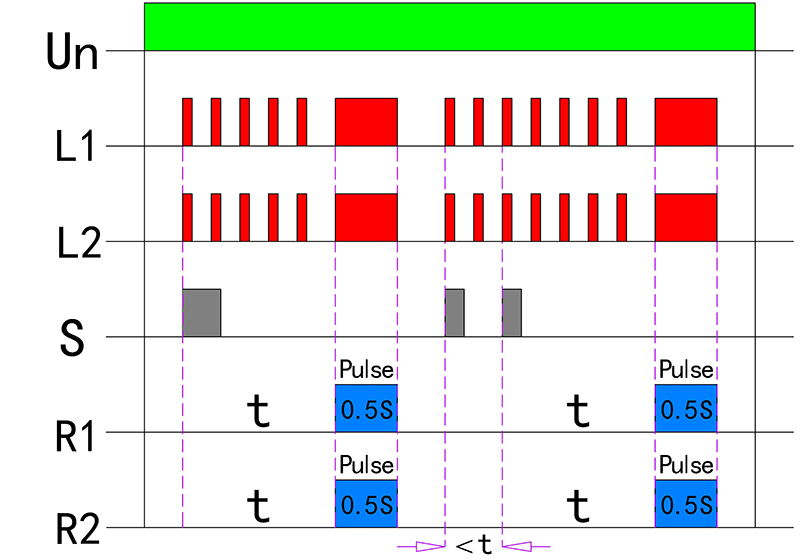

Mode 1: When the relay Un is powered on and the S control terminal is activated, output contacts R1 and R2 begin a delay. After a delay of time t, both R1 and R2 close for 0.5 seconds and then open. If the S control terminal is reactivated during the delay period t, the delay resets and restarts. This cycle repeats.
Mode Features:
● Delay is triggered by the rising edge of S.
● The delay can be reset.
● Can be triggered again to start.

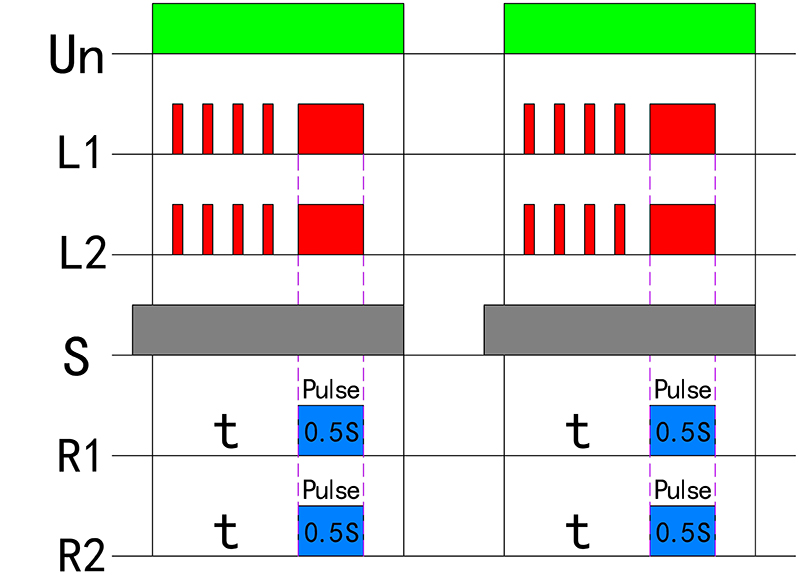

Mode 2: If the S control terminal is activated before the power supply, when the relay Un is powered on, both output contacts R1 and R2 begin a delay. After a delay of time t, both R1 and R2 close for 0.5 seconds and then open.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5225H00-01 Single Trigger Pulse Time Relay Supplier and Wholesale YX5225H00-01 Single Trigger Pulse Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
