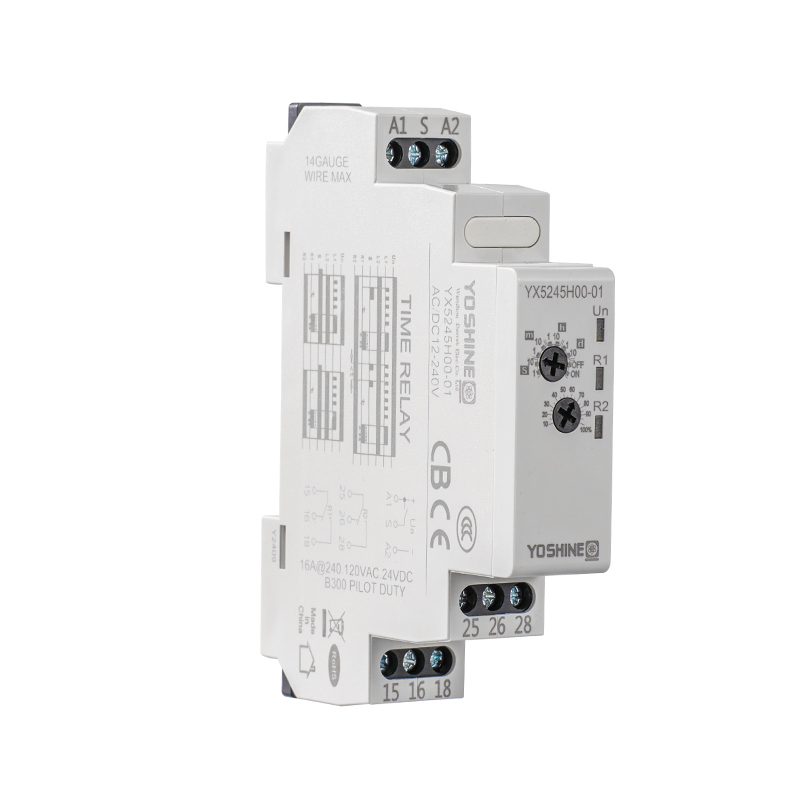

| ■ Characteristics | Single trigger pulse output / pulse output | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 11 | ■ Alternative Models |
Power-On Delay Dual Mode (Default is Mode 1; if the S control terminal is activated before the power supply, Mode 2 is triggered):

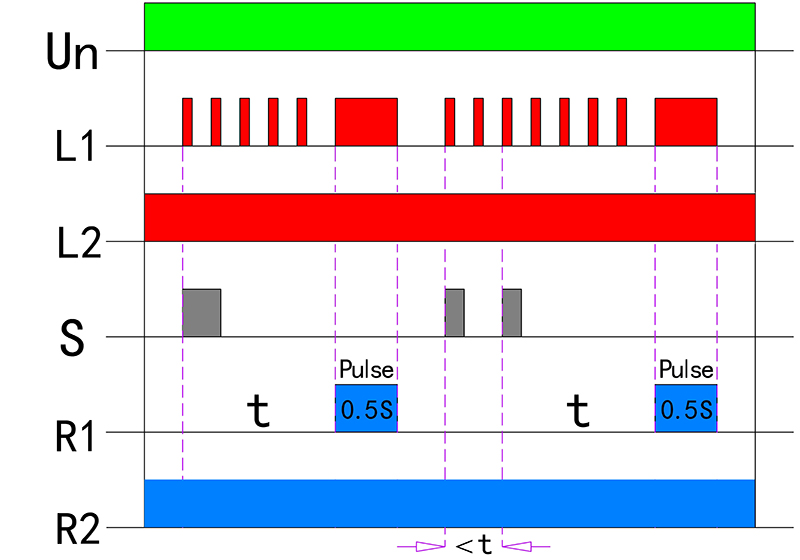

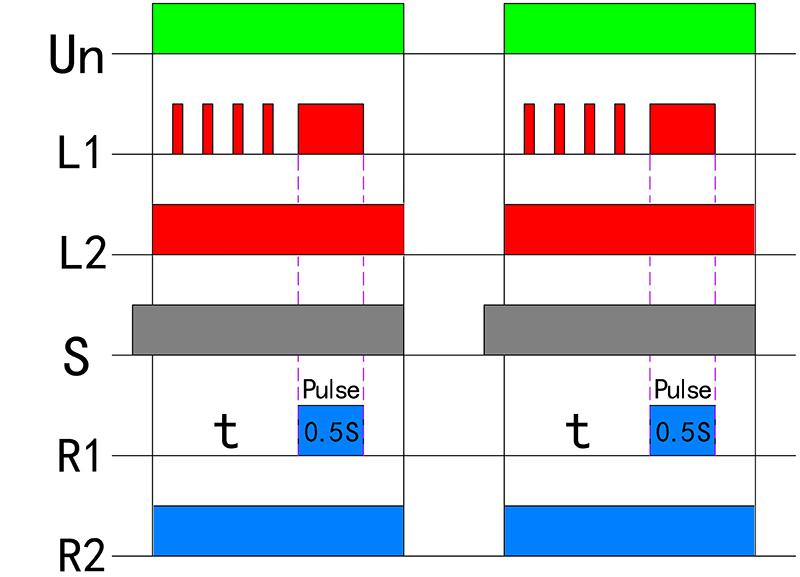

Mode 1: When the relay Un is powered on and the S control terminal is activated, output contact R1 begins a delay. After a delay of time t, R1 closes for 0.5 seconds and then opens. If the S control terminal is reactivated during the delay period t, the delay resets and restarts. This cycle repeats.
Mode Features:
● Delay is triggered by the rising edge of S.
● The delay can be reset.
● Can be triggered again to start.
Mode 2: If the S control terminal is activated before the power supply, when the relay Un is powered on, output contact R1 begins a delay. After a delay of time t, R1 closes for 0.5 seconds and then opens.
Note: In both modes, output contact R2 closes immediately upon power-on and remains closed until the relay Un is powered off.
 |
 |
