| ■ Characteristics | Single time delay ON1/Single time delay OFF1 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay/Off delay DPDT One Inst., One Delay |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 13 |
Dual Mode (Normal Mode is On Delay, with S Control Terminal Priority Leading to Off Delay Mode)

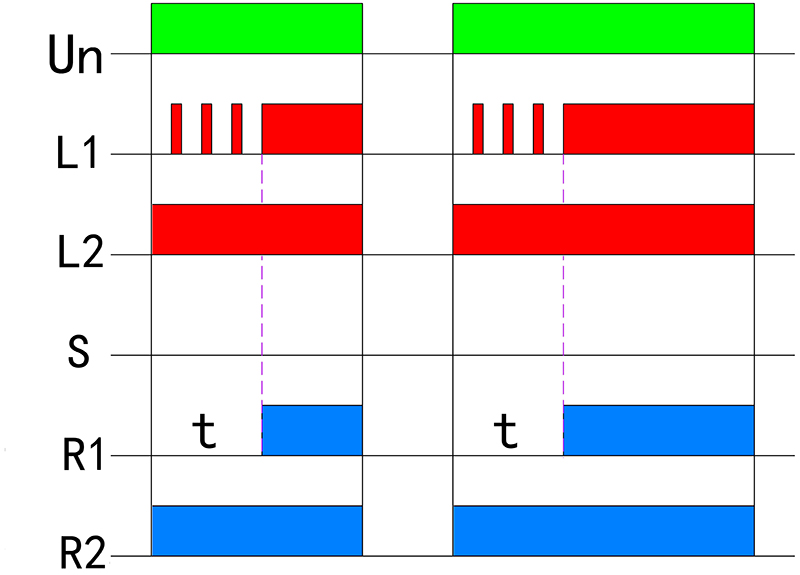

On Delay: When relay Un is powered on, the output contact R1 starts to delay. After a delay time (t), R1 closes and remains closed until the relay is powered off, at which point R1 opens.

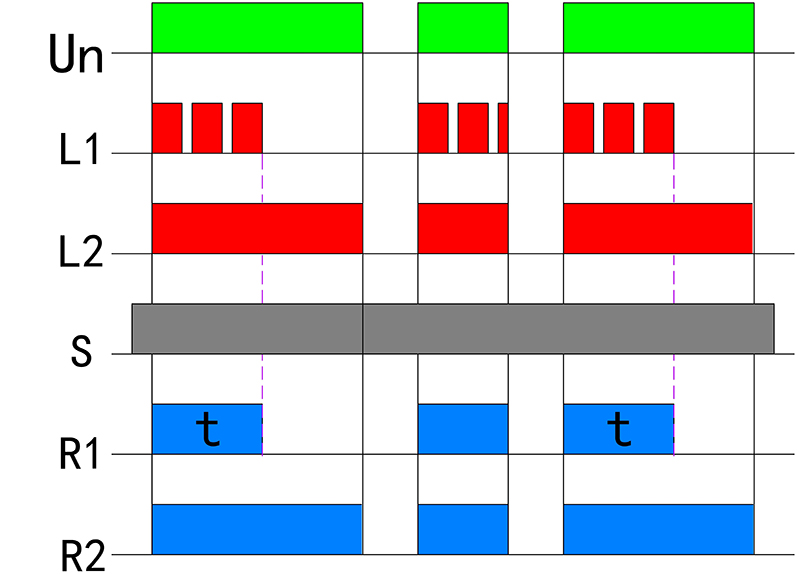

Off Delay: When the S control terminal is prioritized and powered before the relay, once relay Un is powered on, output contact R1 closes immediately, and the delay starts. After a delay time (t), R1 opens.
In both modes, output contact R2 closes immediately when powered on and remains closed until the relay Un is powered off, at which point R2 opens.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5240H00 Guide Rail Type Time Relay Module Supplier and Wholesale YX5240H00 Guide Rail Type Time Relay Module Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
