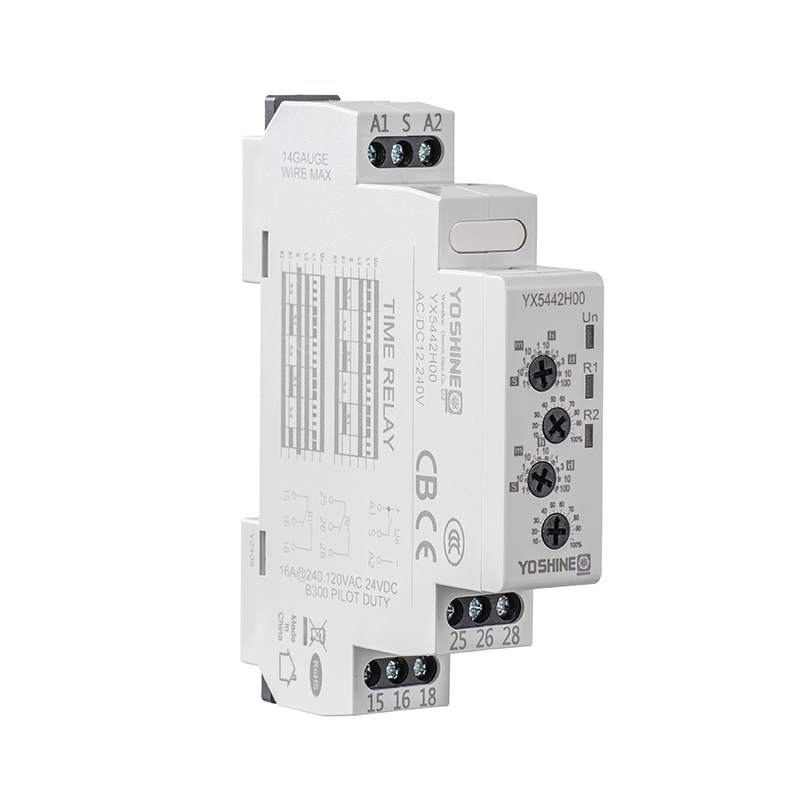

| ■ Characteristics | Dual Time Cycle Delay 1/Dual Time Cycle Delay 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 16 |
Dual-Mode Cycling (Normal Mode 1, If S Control Terminal is Activated Before Power-On, Enter Mode 2)

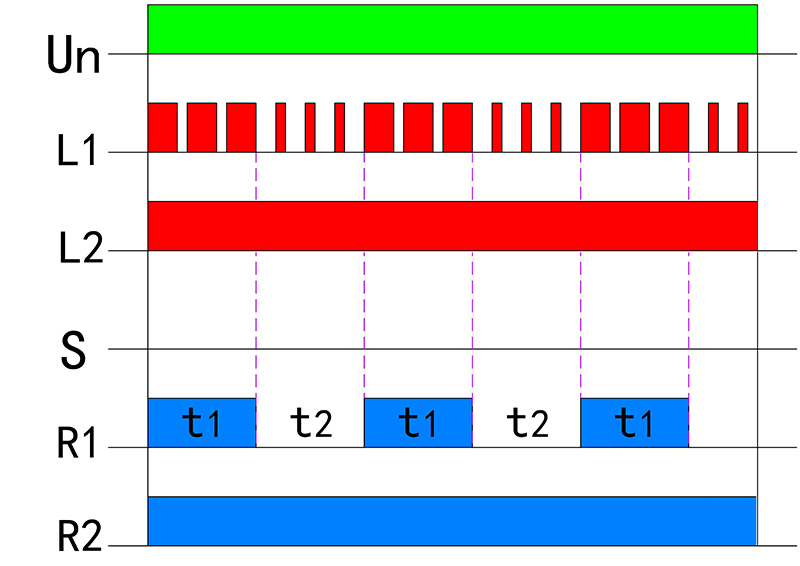

Mode 1: When relay Un is powered on, output contact R1 closes and the delay starts. After delay t1, output contact R1 opens. After delay t2, R1 closes again. After another delay t1, output contact R1 opens. This delay cycle repeats until relay Un is powered off.

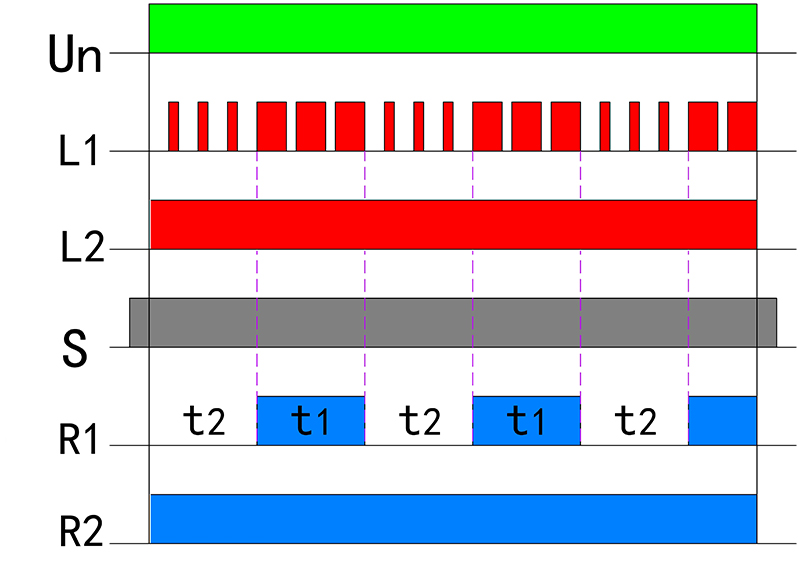

Mode 2: If the S control terminal is activated before power-on, when relay Un is powered on, the delay starts. After delay t2, R1 closes. After delay t1, R1 opens. After another delay t2, R1 closes again. This cycle continues until relay Un is powered off.
In both modes, output contact R2 closes immediately upon power-on and remains closed until relay Un is powered off.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE One Inst,One Delay DPDT Rail Type Dual Time Cycle Relay Supplier and Wholesale YOSHINE One Inst,One Delay DPDT Rail Type Dual Time Cycle Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
