| ■ Characteristics | Alternating Cycle Delay 1/Alternating Cycle Delay 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 7 |
Alternate Dual-Mode Cycling (Normal Mode 1, If S Control Terminal is Activated Before Power-On, Enter Mode 2)

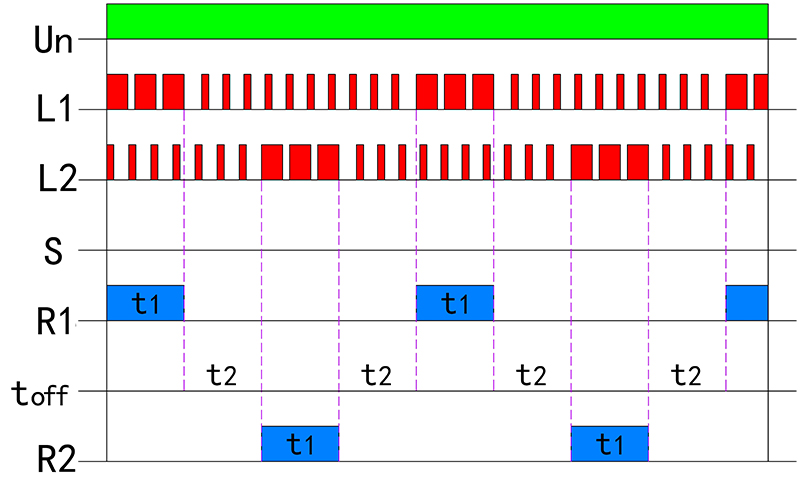

Mode 1: When relay Un is powered on, output contact R1 immediately closes and opens after delay t1. After delay t2, output contact R2 closes for t1 and then opens. This cycle continues until relay Un is powered off.

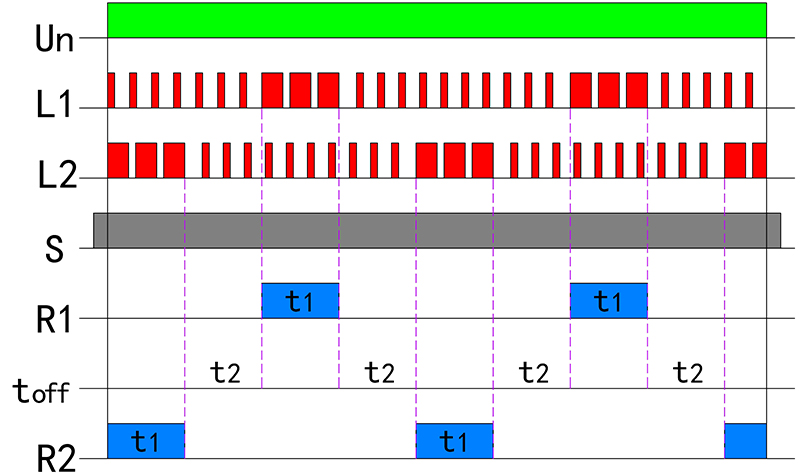

Mode 2: If the S control terminal is activated before power-on, when relay Un is powered on, output contact R2 immediately closes, and the delay starts. After delay t1, R2 opens. After delay t2, R1 closes, and after delay t1, R1 opens. This delay cycle continues until relay Un is powered off.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YX5453H00 Alternating Cycle Time Relay Supplier and Wholesale YX5453H00 Alternating Cycle Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
