| ■ Characteristics | Single Time Cycle Delay 1/Single Time Cycle Delay 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay/Off delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 15 |
Dual-Mode Cycling (Normal Mode is Mode 1, If S Control Terminal is Activated Before Power-On, Enter Mode 2)

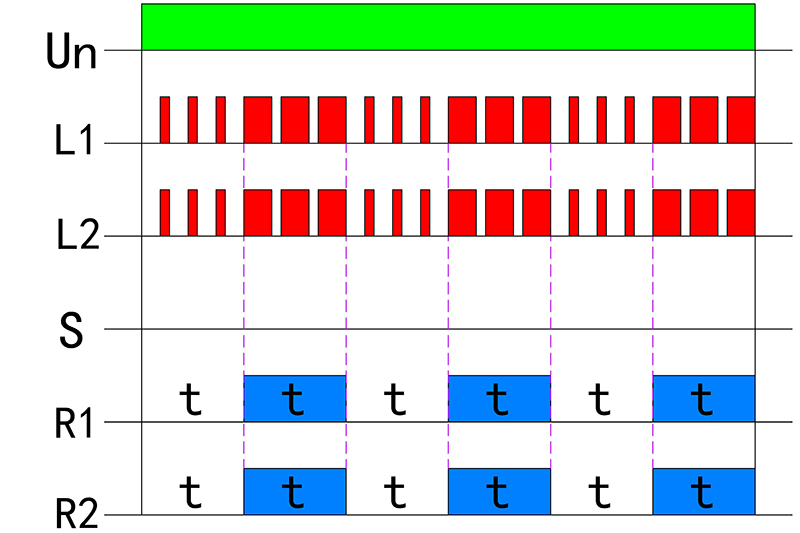

Mode 1: When relay Un is powered on, the delay starts. After delay t, output contacts R1 and R2 close. After another delay t, R1 and R2 open. This delay cycle continues until relay Un is powered off.

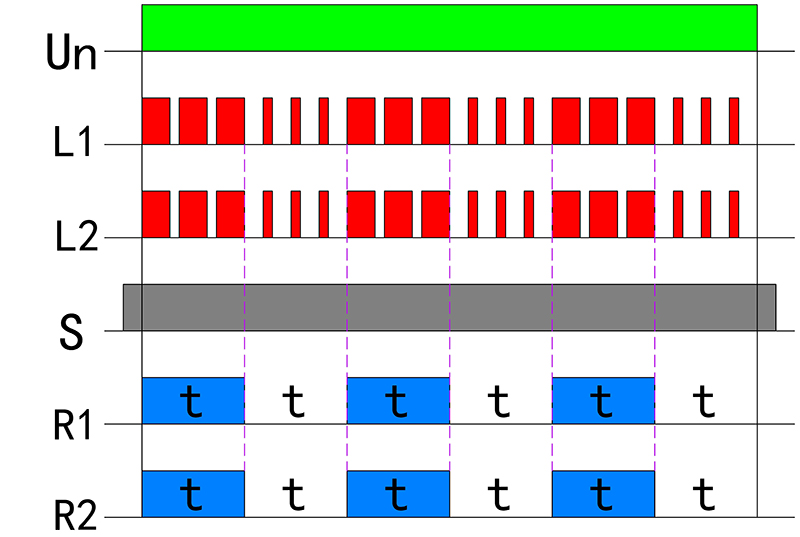

Mode 2: If the S control terminal is activated before power-on, when relay Un is powered on, output contacts R1 and R2 close immediately and the delay starts. After delay t, R1 and R2 open. After another delay t, R1 and R2 close again. This cycle continues until relay Un is powered off.
 |
 |

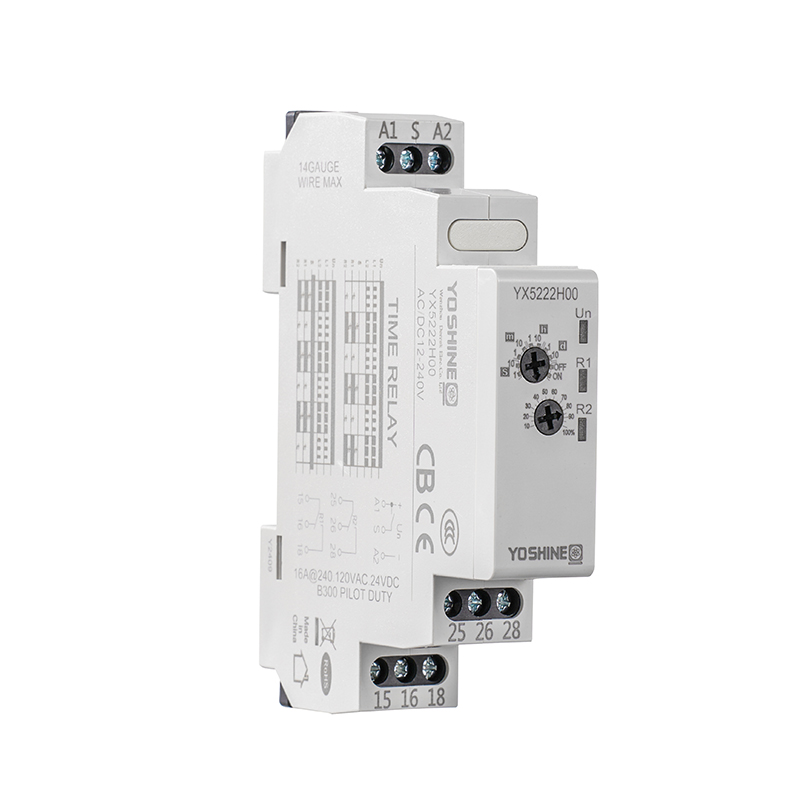

Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Time Cycle Relay DPDT On & Off Delay Time Relay Module Supplier and Wholesale YOSHINE Single Time Cycle Relay DPDT On & Off Delay Time Relay Module Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
