| ■ Characteristics | Single Time Cycle Delay 1/Single Time Cycle Delay 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay/Off delay DPDT One Inst.,One Delay |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 15 |
Dual-Mode Cycling (Normal Mode is Mode 1, If S Control Terminal is Activated Before Power-On, Enter Mode 2)

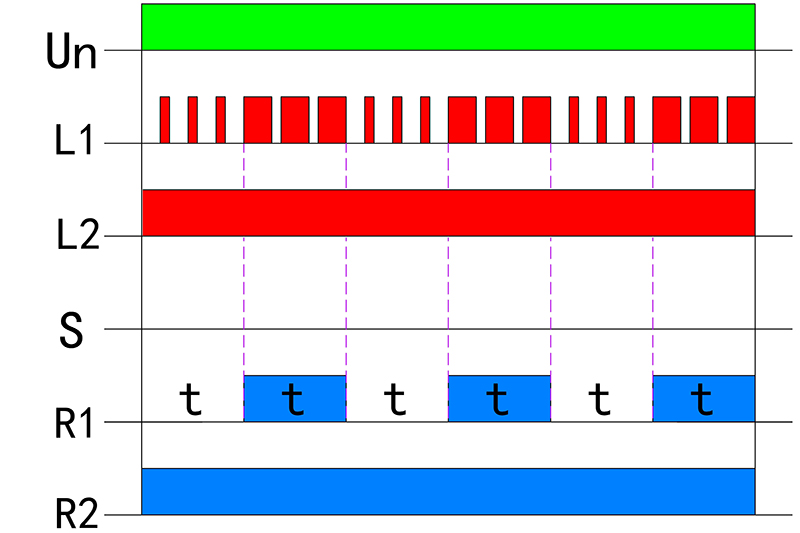

Mode 1: When relay Un is powered on, the delay starts. After delay t, output contact R1 closes. After another delay t, R1 opens. This delay cycle continues until relay Un is powered off.

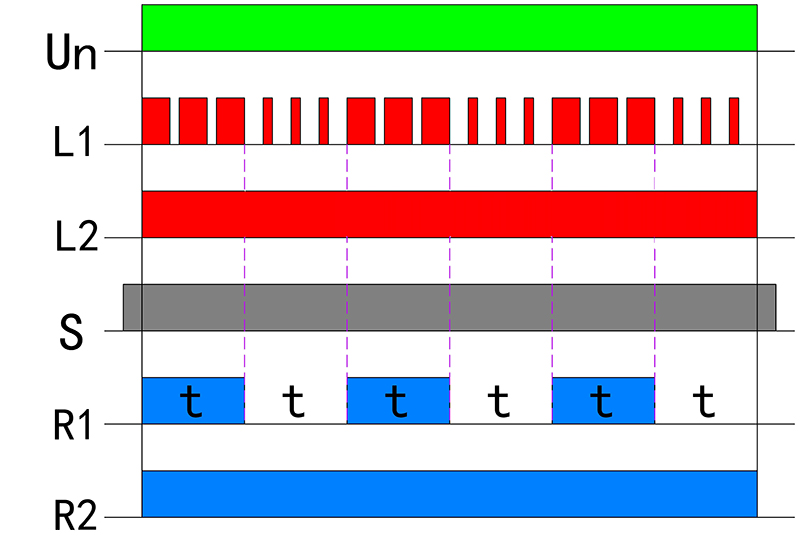

Mode 2: If the S control terminal is activated before power-on, when relay Un is powered on, output contact R1 closes immediately and the delay starts. After delay t, R1 opens. After another delay t, R1 closes again. This cycle continues until relay Un is powered off.
In both modes, output contact R2 closes immediately upon power-on and remains closed until relay Un is powered off.
 |
 |
